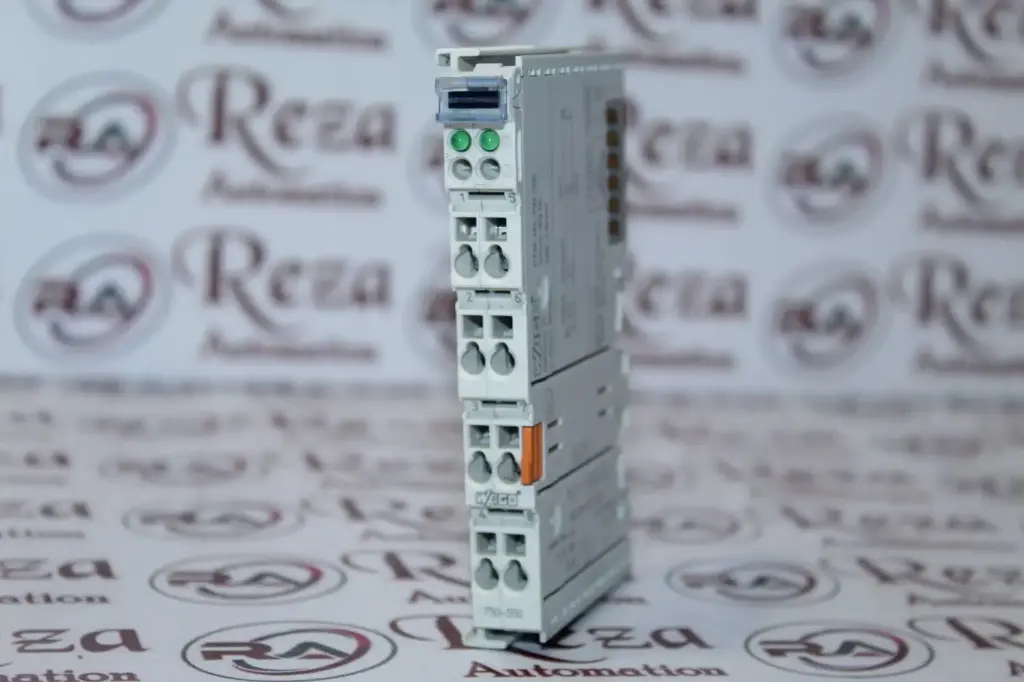

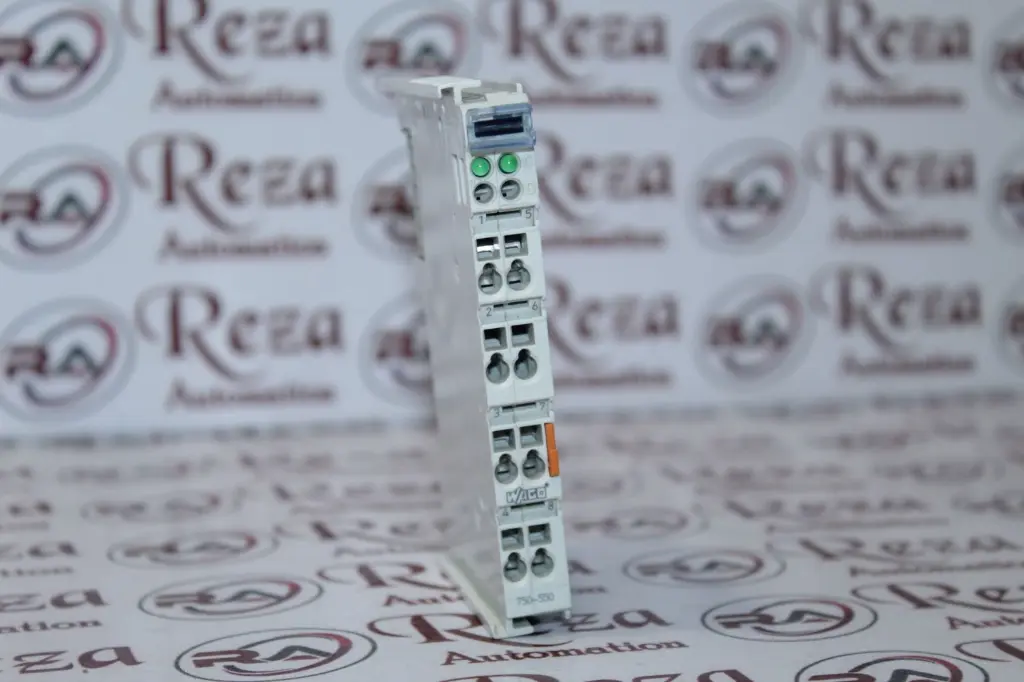

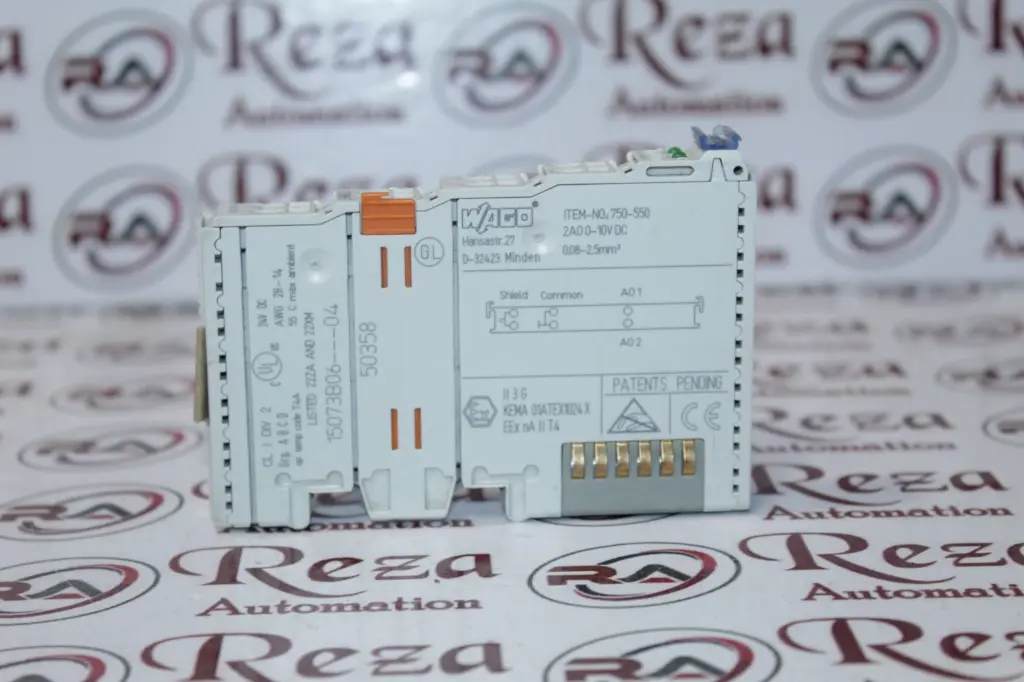

WAGO 750-550 2-Channel Analog Output Module
The WAGO 750-550 is an analog output module designed for the WAGO I/O System 750 series, providing precise analog signal generation for industrial automation and process control applications. This module converts digital control values from a PLC or fieldbus controller into standardized analog output signals, allowing accurate control of field devices such as variable frequency drives, control valves, actuators, positioning systems, and process instruments.
Designed for distributed I/O architectures, the 750-550 enables reliable transmission of analog control signals in manufacturing plants, process industries, utilities, and building automation systems. Its compact DIN-rail-mounted design allows seamless integration into WAGO fieldbus nodes while maintaining high signal accuracy and operational stability. The module is particularly suitable for applications where precise output control is essential for maintaining process efficiency and product quality.
The WAGO 750-550 provides two independent analog output channels, enabling simultaneous control of multiple field devices. Its high-resolution signal conversion ensures stable operation and accurate process regulation, making it a dependable solution for both new automation projects and modernization of existing control systems.
Technical Specifications :
- ANALOG OUTPUT MODULE
- WAGO I/O SYSTEM 750 SERIES
- MODEL: 750-550
- 2 ANALOG OUTPUT CHANNELS
- OUTPUT SIGNAL: 0...10 VDC
- RESOLUTION: 12-BIT
- SHORT-CIRCUIT PROTECTED OUTPUTS
- HIGH-ACCURACY SIGNAL CONVERSION
- STATUS LED INDICATION
- SYSTEM VOLTAGE: 24 VDC
- DIN RAIL MOUNT DESIGN
- COMPACT MODULAR CONSTRUCTION
- MAINTENANCE-FREE OPERATION
- FIELDBUS-INDEPENDENT MODULE
- HOT-SWAPPABLE WITHIN SYSTEM CONFIGURATION
Specific Function :
The primary function of the WAGO 750-550 is to convert digital process values from a controller into analog voltage output signals. These signals can then be used to regulate external devices requiring proportional control.
Typical controlled devices include :
- Variable Frequency Drives (VFDs)
- Motor Speed Controllers
- Control Valves
- Positioning Actuators
- Process Regulators
- Analog Indicating Equipment
- Dosing Systems
- HVAC Control Equipment
The module ensures stable signal transmission, allowing precise control of industrial processes and machine operations.
Input / Output Capacity :
Outputs
- 2 Analog Outputs
- Voltage Output Range: 0 to 10 VDC
- Independent Output Channels
- High Resolution Analog Signal Generation
Input Capacity
- No Analog Inputs
- Dedicated Analog Output Function
This dedicated output design allows the module to focus entirely on accurate analog signal generation without compromising performance.
Voltage Ratings :
- System Supply Voltage: 24 VDC
- Analog Output Signal: 0 to 10 VDC
- Internal Electronics Powered Through WAGO I/O System
- Suitable for Standard Industrial Control Voltages
The module is designed to operate reliably within industrial control environments where stable analog signal transmission is critical.
Communication Architecture :
Unlike Ethernet or serial communication modules, the WAGO 750-550 communicates through the WAGO I/O backplane bus.
Communication Ports :
- No Dedicated Ethernet Port
- No RS232 Port
- No RS485 Port
- No PROFIBUS Port
- No PROFINET Port
Internal Communication :
- Communication via WAGO Internal Bus
- Data Exchange Through Fieldbus Coupler or Controller
- Real-Time Process Data Transfer
The module depends on the connected WAGO bus coupler or programmable controller for communication with PLC, SCADA, and industrial networks.
Applications :
The WAGO 750-550 is widely used in applications requiring accurate analog control signals.
- Process Automation Systems
- Water Treatment Plants
- Chemical Processing Facilities
- HVAC Control Systems
- Power Generation Plants
- Industrial Manufacturing Equipment
- Packaging Machinery
- Conveyor Control Systems
- Building Management Systems
- Energy Monitoring Systems
- Remote I/O Stations
- Factory Automation Projects
Its precise analog output capability makes it ideal for applications where process variables must be continuously regulated and controlled.
Compatibility :
The WAGO 750-550 is fully compatible with WAGO's modular I/O platform.
Compatible Systems :
- WAGO I/O System 750 Series
- WAGO Fieldbus Couplers
- WAGO Ethernet Controllers
- WAGO PFC Controllers
- WAGO Remote I/O Nodes
- Modbus-Based Automation Systems
- PROFINET Networks (through compatible couplers)
- PROFIBUS Networks (through compatible couplers)
- EtherNet/IP Installations (through compatible couplers)
Compatible Devices :
- Variable Frequency Drives
- Analog Control Valves
- Process Controllers
- Industrial Actuators
- Analog Instrumentation
- HVAC Equipment
- Industrial Monitoring Systems
Key Features :
The WAGO 750-550 offers precise analog signal generation combined with the flexibility of the WAGO modular I/O platform. Its dual-channel design reduces hardware requirements while maintaining accurate control performance. The compact housing allows efficient use of panel space, and the modular construction simplifies installation and maintenance.
Because it operates within the WAGO distributed I/O architecture, the module can easily be integrated into complex automation systems while supporting future expansion. This makes it a practical choice for engineers seeking reliable analog output control in industrial environments.
