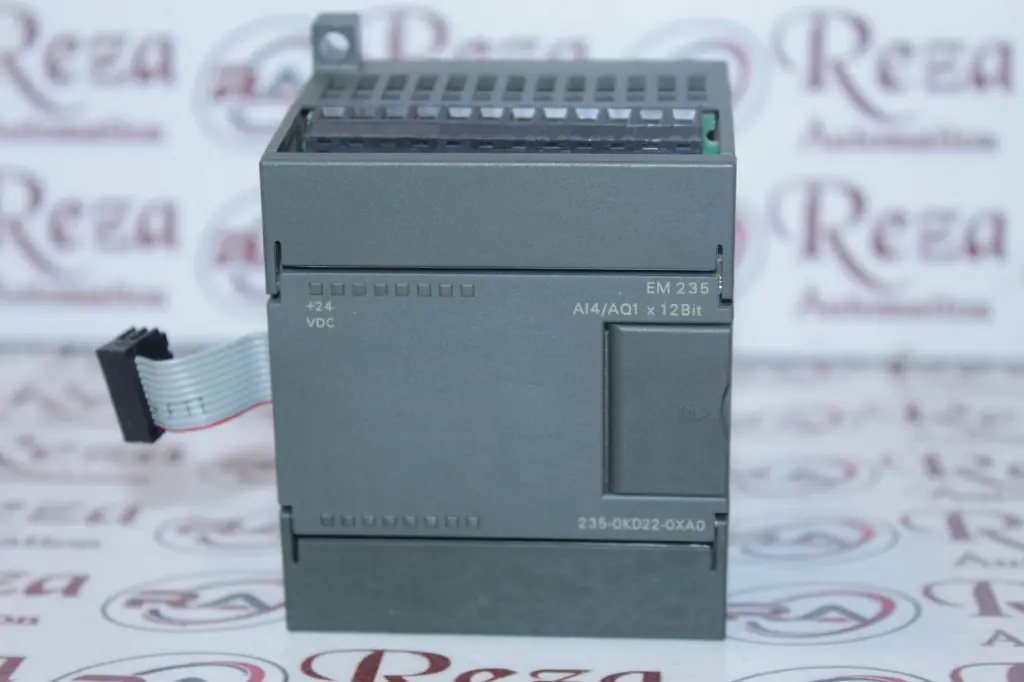

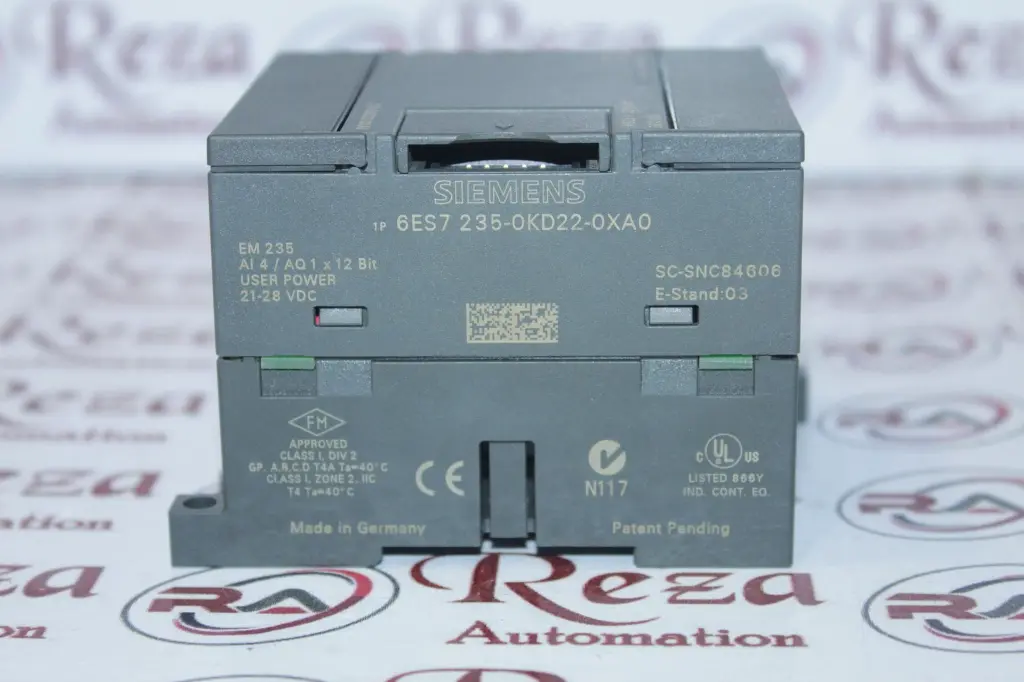

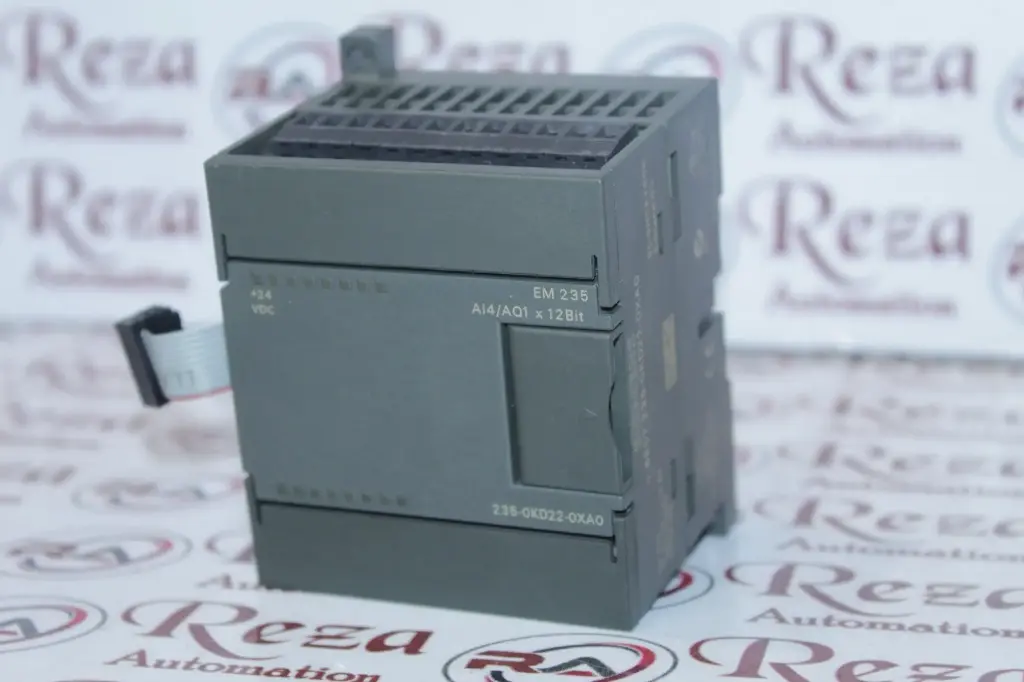

SIEMENS 6ES7 235-0KD22-0XA0 EM235 Analog Input Output Module
The Siemens 6ES7 235-0KD22-0XA0 is a SIMATIC S7-200 EM 235 Analog Expansion Module designed to provide both analog input and analog output capabilities for S7-200 PLC systems. This versatile module enables accurate processing of analog signals from field devices such as sensors, transmitters, control valves, and process instruments. It is widely used in industrial automation applications requiring precise monitoring and control of temperature, pressure, flow, level, and other process variables.
The EM 235 module expands the functionality of S7-200 controllers by allowing integration of analog devices into PLC-based control systems. Its compact design, reliable performance, and flexible signal handling make it suitable for machine automation, process control, utility systems, and industrial production environments. The module supports both voltage and current signals, providing a practical solution for a wide range of automation requirements.
Technical Specifications :
• ANALOG INPUT/OUTPUT MODULE
• SIMATIC S7-200 SERIES
• EM 235 EXPANSION MODULE
• 4 ANALOG INPUTS
• 1 ANALOG OUTPUT
• INPUT SIGNALS: VOLTAGE AND CURRENT
• OUTPUT SIGNALS: VOLTAGE AND CURRENT
• HIGH-RESOLUTION ANALOG PROCESSING
• EXPANSION MODULE FOR S7-200 PLC
• INDUSTRIAL DIN RAIL INSTALLATION
• COMPACT MODULAR DESIGN
• RELIABLE PROCESS CONTROL APPLICATIONS
Applications :
The Siemens EM 235 module is used in applications where analog signals must be monitored, processed, and controlled within a PLC system.
• Temperature Monitoring and Control
• Pressure Control Systems
• Flow Measurement Applications
• Level Monitoring Systems
• Process Automation Plants
• Water and Wastewater Treatment Systems
• Packaging Machines
• HVAC Control Systems
• Industrial Production Equipment
• Energy Management Systems
• Chemical Processing Plants
• Building Automation Systems
The module enables direct connection of analog field devices to the PLC, allowing real-time monitoring and process control.
Compatibility :
The 6ES7 235-0KD22-0XA0 is designed specifically for Siemens S7-200 automation systems.
• SIMATIC S7-200 PLC Systems
• S7-200 CPU 221 Series
• S7-200 CPU 222 Series
• S7-200 CPU 224 Series
• S7-200 CPU 224XP Series
• S7-200 CPU 226 Series
• STEP 7 Micro/WIN Programming Environment
• Standard Industrial Analog Sensors and Transmitters
The module integrates seamlessly into existing S7-200 installations, making it suitable for system upgrades and expansion projects.
Key Features :
The EM 235 module combines analog input and output functionality within a single expansion unit, reducing panel space requirements and simplifying system design. The four analog inputs can receive signals from various industrial sensors, while the analog output can be used to control actuators, drives, valves, and process equipment.
Its ability to process both voltage and current signals provides flexibility when integrating different field devices. This makes the module a practical choice for automation engineers seeking reliable analog data acquisition and control within Siemens S7-200 PLC environments.
Designed for industrial reliability, the module delivers stable signal conversion and accurate process control performance. It supports continuous operation in demanding industrial environments and is widely used in manufacturing, utilities, infrastructure, and process industries.
